X22CrMoV12-1 1.4923 Martensitic Creep Resisting Stainless Steel

X22CrMoV12-1 1.4923 Martensitic Creep Resisting Stainless Steel

X22CrMoV12-1 1.4923 Martensitic Creep Resisting Stainless Steel

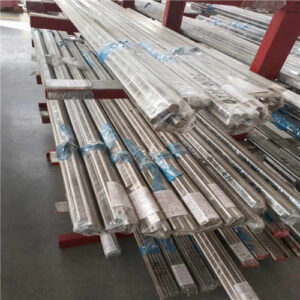

We offer steel grade 1.4923 in the following profiles

Steel grade 1.4923is a available as

ROUND BAR: 6 – 600 mm

PLATE: 0.1-20mm thickness; 8-1500mm width

WIRE: 0.1-30mm diameter

STRIP: 0.1-4  thickness; 80-1219 mm width

Flat and SQUARE: 5-400 mm

If there is something you miss or wonder about you can always contact us to discuss your needs.



1.4923 Standard:

EN 10302: 2008 Creep resisting steels, nickel and cobalt alloys

EN 10269: 1999 Steels and nickel alloys for fasteners with specified elevated and/or low temperature properties

EN 10088-1: 2005 Stainless steels. List of stainless steels



Equivalent grades of X22CrMoV12-1 (1.4923)

EU/EN :X22CrMoV12-1

France AFNOR : Z21CDV12



Chemical composition %  of X22CrMoV12-1 (1.4923)

C Si Mn Ni P S Cr Mo V
0.18 – 0.24 max   0.5 0.4 – 0.9 0.3 – 0.8 max   0.025 max   0.015 11 – 12.5 0.8 – 1.2 0.25 – 0.35



Mechanical properties of steel X22CrMoV12-1 (1.4923)

Rm – Tensile strength (MPa) (+QT) 800-950
Rp0.2 0.2% proof strength (MPa) (+QT) 600
KV – Impact energy (J) (+QT) +20° 27
A – Min. elongation at fracture (%) (+QT) 14
Z – Reduction in cross section on fracture (%) (+QT) 40
Brinell hardness (HBW): (+A) 302



Introduction

1.4923 stainless steel is a martensitic stainless steel grade, which can be heat threated. This grade is written as 1.4923 or X22CrMoV12-1 according to EN norm and sometime, it can also be writen as 1.4922 and X20CrMoV12-1. 1.4923 stainless steel is a combination of chromium, molibdenium, vanadium, nickel elements. 1.4923 material shows a good performance up to 580 degree celcius in many applications. 1.4923 material is usually produced and heat threated according to QT800. 1.4923 has good mechanical properties both in room temperature and in high temperatures up to 580 degree. 1.4923 is not suitable for very high temperatures and other grades should be used for higher temperatures. 1.4923 and 1.4922 are really close to each other and in many material certicate, most of the materials confirms both 1.4923 and 1.4922 standart. So most of the time, we can see both of these grades in the same material certicate. In Bircelik warehouse, 1.4923 grade is avaible in round bar shape. In power generation facilities, chemical production facilities, machine equipment and turbine blades, 1.4923 stainless steel material used very commonly.



1.4923 Typical applications

pressure vessels and boilers

aviation and aerospace

reactor manufacture

turbine components
