302 S30200 1.4319 SUS302 Stainless Steel

price:
Contact customer service
Heat Treatment
Cold Processing
Hot Working

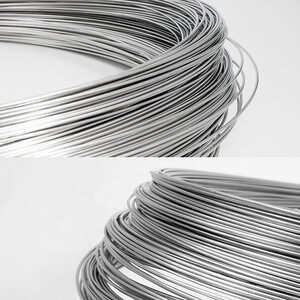

302 Stainless Steel Wire

302 Stainless Steel Wire

302 Stainless Steel Wire

Stainless Steel 302 AISI Type 302 Stainless Steel (UNS S30200)

Type 302 stainless steel is basically a higher carbon version of type 304, a variant of 18-8 stainless steel. Its carbon content is ≤0.15%, and the minimum chromium content is only 1% less than 304. Grade 302 stainless steel spring wire (specified in ASTM A313) has high heat resistance and good corrosion resistance, and has excellent spring performance in the full hard or tempered condition. The main difference between SS 302, 304 and 304L is the carbon content, so there is a difference in the amount of carbide precipitation that may occur in the heat affected zone (HAZ) after heating and cooling cycles are encountered in welding. The P content of type 303 and 303Se is ≤0.20%, plus 0.15% of Se or S for free machining. These elements are not conducive to weldability and may cause severe hot cracking of the weld metal. AISI 301 has lower nickel and chromium content, so the work hardening rate is higher than AISI 302.



Datasheet & Specification

The following tables and lists give the stainless steel 302 datasheet and specification including chemical composition, physical properties and mechanical properties, heat treatment, welding, etc.



Chemical Composition

SS 302 material chemical composition is listed in the following table.

Datasheet 1, The table below shows AISI 302 chemical composition.

Type 302 Stainless Steel Composition, %
ASTM AISI (UNS) C, ≤ Si, ≤ Mn, ≤ P, ≤ S, ≤ Cr Ni N, ≤ Mo, ≤ Cu, ≤
ASTM A313/A313M 302 (UNS S30200) 0.12 1.00 2.00 0.045 0.03 17.0-19.0 8.0-10.0 0.1
ASTM A276/A276M;
ASTM A479/A479M;
ASTM A580/A580M;
ASTM A314;
ASTM A473
ASTM A959;
0.15 1.00 2.00 0.045 0.03 17.0-19.0 8.0-10.0 0.1
ASTM A240/A240M;
ASTM 666;
SAE J405
0.15 0.75 2.00 0.045 0.03 17.0-19.0 8.0-10.0 0.1
SAE AMS 5688 SAE 30302 0.15 1.00 2.00 0.04 0.03 17.0-19.0 8.0-10.0 0.75 0.75



Notes:

ASTM A313/A313M: Stainless Steel Spring Wire

ASTM A276/A276M: Standard Specification for Stainless Steel Bars and Shapes

ASTM A240/A240M: Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications

ASTM A580/A580M: Stainless Steel Wire

ASTM A479/A479M: Stainless Steel Bars and Shapes for Use in Boilers and Other Pressure Vessels

ASTM A959: Standard Guide for Specifying Harmonized Standard Grade Compositions for Wrought Stainless Steels

ASTM A473: Stainless Steel Forgings

ASTM A314: Standard Specification for Stainless Steel Billets and Bars for Forging

ASTM 666: Annealed or Cold-Worked Austenitic Stainless Steel Sheet, Strip, Plate, and Flat Bar

SAE J405: Chemical Composition of SAE Wrought Stainless Steels

SAE AMS 5688: Steel, Corrosion-Resistant, Wire 18Cr-9Ni (SAE 30302) Spring Temper



AISI 302 Stainless Steel Properties

The datasheets below list grade 302 stainless steel properties including physical properties and mechanical properties.

Physical Properties

Type 302 grade stainless steel physical properties are listed in the table below such as density, melting point, specific heat, electrical resistivity, elastic modulus (modulus of elasticity), thermal conductivity, and coefficient of thermal expansion (CTE).

Datasheet 2, AISI 302 stainless steel properties – 1.

Notes:

10-6·K-1 = 10-6/K

1 Ω·mm²/m = 1 μΩ·m

1 g/cm3 = 1 kg/dm3 = 1000 kg/m3

1 GPa = 1 kN/mm2

1 MPa = 1 N/mm2

Type 302 Physical Properties
Density, g/cm3 (lb/in3) 7.9 (0.289)
Melting point, °C (°F) 1400-1420 (2550-2590)
Specific heat capacity, J/kg·K (Btu/lb ·°F) 500 (0.12) at 20 °C (68 °F)
Electrical resistivity, μΩ·m 0.72 at 20 °C (68 °F)
Conductivity, % IACS 3
Magnetic permeability 1.02 (Approximate)
Elastic modulus (Modulus of Elasticity),  Gpa (106 psi) 193 (28)
Thermal conductivity, W/m·K (Btu/ft · h ·°F) 16.2 (9.4) at 100 °C (212 °F)
21.5 (12.4) at 500 °C (932 °F)
Coefficient of thermal expansion (CTE), 10-6/K (μin./in. ·°F) 17.2 (9.6) at 0-100 ℃ (32-212 °F)
17.8 (9.9) at 0-315 ℃ (32-600 °F)
18.4 (10.2) at 0-538 ℃ (32-1000 °F)



Acoustic properties
Material Density (ρ) Sonic velocities, 105 cm/s Acoustic impedance
g/cm3 (lb/in3) Vl Vt Vs (Zl) 106 g/cm2 · s
Type 302 7.9 (0.29) 5.66 3.12 3.12 4.47
Vl- Longitudinal (compression) waves;
Vt- Transverse (shear) waves;
Vs- Surface waves
For longitudinal waves Zl = ρVl.



SS 302 Mechanical Properties

AISI 302 stainless steel mechanical properties are given in the datasheet below including tensile strength, yield strength, elongation, reduction in area, Brinell and Rockwell hardness, etc.

Datasheet 3, Type 302 stainless steel spring wire properties – 2.

ASTM A313 Stainless Steel Spring Wire Tensile Strength Requirements for Types 302 Class 1 and 304
Diameter (d), in. Diameter (d), mm Bend Test, Minimum Number of Bends ksi Mpa
≤0.009 ≤0.23 325-355 2240-2450
0.009<d≤0.010 0.23<d≤0.25 320-350 2205-2415
0.010<d≤0.011 0.25<d≤0.28 318-348 2190-2400
0.011<d≤0.012 0.28<d≤0.30 316-346 2180-2385
0.012<d≤0.013 0.30<d≤0.33 314-344 2165-2370
0.013<d≤0.014 0.33<d≤0.36 312-342 2150-2360
0.014<d≤0.015 0.36<d≤0.38 310-340 2135-2345
0.015<d≤0.016 0.38<d≤0.41 308-338 2125-2330
0.016<d≤0.017 0.41<d≤0.43 306-336 2110-2315
0.017<d≤0.018 0.43<d≤0.46 304-334 2095-2300
0.018<d≤0.020 0.46<d≤0.51 300-330 2070-2275
0.020<d≤0.022 0.51<d≤0.56 296-326 2040-2250
0.022<d≤0.024 0.56<d≤0.61 292-322 2015-2220
0.024<d≤0.026 0.61<d≤0.66 291-320 2005-2205
0.026<d≤0.028 0.66<d≤0.71 8 289-318 1995-2190
0.028<d≤0.031 0.71<d≤0.79 8 285-315 1965-2170
0.031<d≤0.034 0.79<d≤0.86 8 282-310 1945-2135
0.034<d≤0.037 0.86<d≤0.94 8 280-308 1930-2125
0.037<d≤0.041 0.94<d≤1.04 8 275-304 1895-2095
0.041<d≤0.045 1.04<d≤1.14 8 272-300 1875-2070
0.045<d≤0.050 1.14<d≤1.27 8 267-295 1840-2035
0.050<d≤0.054 1.27<d≤1.37 8 265-293 1825-2020
0.054<d≤0.058 1.37<d≤1.47 7 261-289 1800-1990
0.058<d≤0.063 1.47<d≤1.60 7 258-285 1780-1965
0.063<d≤0.070 1.60<d≤1.78 7 252-281 1735-1935
0.070<d≤0.075 1.78<d≤1.90 7 250-278 1725-1915
0.075<d≤0.080 1.90<d≤2.03 7 246-275 1695-1895
0.080<d≤0.087 2.03<d≤2.21 7 242-271 1670-1870
0.087<d≤0.095 2.21<d≤2.41 7 238-268 1640-1850
0.095<d≤0.105 2.41<d≤2.67 5 232-262 1600-1805
0.105<d≤0.115 2.67<d≤2.92 5 227-257 1565-1770
0.115<d≤0.125 2.92<d≤3.17 5 222-253 1530-1745
0.125<d≤0.135 3.17<d≤3.43 3 217-248 1495-1710
0.135<d≤0.148 3.43<d≤3.76 3 210-241 1450-1660
0.148<d≤0.162 3.76<d≤4.11 3 205-235 1415-1620
0.162<d≤0.177 4.11<d≤4.50 3 198-228 1365-1570
0.177<d≤0.192 4.50<d≤4.88 1 194-225 1335-1550
0.192<d≤0.207 4.88<d≤5.26 1 188-220 1295-1515
0.207<d≤0.225 5.26<d≤5.72 1 182-214 1255-1475
0.225<d≤0.250 5.72<d≤6.35 1 175-205 1205-1415
0.250<d≤0.278 6.35<d≤7.06 1 168-198 1160-1365
0.278<d≤0.306 7.06<d≤7.77 1 161-192 1110-1325
0.306<d≤0.331 7.77<d≤8.41 1 155186 1070-1280
0.331<d≤0.362 8.41<d≤9.19 1 150-180 1035-1240
0.362<d≤0.394 9.19<d≤10.00 1 145-175 1000-1205
0.394<d≤0.438 10.00<d≤11.12 1 140-170 965-1170
0.438<d≤0.500 11.12<d≤12.70 1 135-165 930-1140
>0.500 >12.70 130-160 895-1105
When wire is specified in straightened and cut lengths, the minimum tensile strength shall be 90 % of the values listed in the table.



ASTM A313 Tensile Strength Requirement for SS302 Class 2
Diameter Cold Drawn Nominal Stress Relieved
in. mm ksi (MPa) ksi Mpa
0.050-0.160 1.30-4.00 290 (2000) 290-340 2000-2345
Stress relieved at 800-850°F (430-455°C) for 1/2h and air cooled.



ASTM A276 Type 302 Stainless Steel Mechanical Properties
ASTM AISI (UNS) Tensile Strength, Mpa (ksi), ≥ 0.2% Yield Strength, Mpa (ksi), ≥ Elongation in 2 in. (50 mm), %, ≥ Reduction of Area, %, ≥ Conditions
ASTM A276/A276M 302, 302B, 304, 304LN, 305, 308, 309, 309S, 309Cb, 310, 310S, 310Cb, 314, 316, 316LN, 316Cb, 316TI, 317, 321, 347, 348 515 (75) 205 (30) 40 50 Annealed, Hot finished
620 (90) 310 (45) 30 40 Annealed, Cold finished, Dia ≤ 1/2 in (12.7mm)
515 (75) 205 (30) 30 40 Annealed, Cold finished, Dia > 1/2 in (12.7mm)



ASTM A240 Type 302 Mechanical Properties
ASTM AISI (UNS) Tensile Strength, Mpa (ksi), ≥ 0.2% Yield Strength, Mpa (ksi), ≥ Elongation in 2 in. (50 mm), %, ≥ Brinell Hardness, HB, ≤ Rockwell Hardness, HRB, ≤
ASTM A240/A240M 302 (UNS S30200) 515 (75) 205 (30) 40 201 92



ASTM A473 SS302 Mechanical Properties
ASTM AISI (UNS) Tensile Strength, Mpa (ksi), ≥ 0.2% Yield Strength, Mpa (ksi), ≥ Elongation in 2 in. (50 mm), %, ≥ Reduction of Area, %, ≥ Conditions
ASTM A473/A473M 302 (UNS S30200) 515 (75) 205 (30) 40 50 Annealed



ASTM A479 SS302 Mechanical Properties
ASTM AISI (UNS) Tensile Strength, Mpa (ksi), ≥ 0.2% Yield Strength, Mpa (ksi), ≥ Elongation in 2 in. (50 mm), %, ≥ Reduction of Area, %, ≥ Conditions
ASTM A479/A479M 302 (UNS S30200) 515 (75) 205 (30) 30 40 Annealed



ASTM A580 Type 302 Mechanical Properties
ASTM AISI (UNS) Tensile Strength, Mpa (ksi), ≥ 0.2% Yield Strength, Mpa (ksi), ≥ Elongation in 2 in. (50 mm), %, ≥ Reduction of Area, %, ≥ Conditions
ASTM A580/A580M 302 (UNS S30200),
302B (UNS S30215)
620 (90) 310 (45) 30 40 Annealed, cold finished
515 (75) 205 (30) 35 50 Annealed



ASTM A666 302 Mechanical Properties
ASTM AISI Type (UNS) Conditions Tensile Strength, MPa (ksi), ≥ 0.2% Yield Strength, MPa (ksi), ≥ Elongation in 50 mm (2 in.), %, ≥ Brinell Hardness (HB), ≤ Rockwell Hardness (HRB), ≤
ASTM A666 302 (UNS S30200) Annealed 517 (75) 205 (30) 40 201 92
Full Hard 1275 (185) 965 (140) 3 (<0.015 in.);
4 (≥ 0.015 in)
1/2 Hard (Half Hard) 1035 (150) 760 (110) 9 (<0.015 in);
10 (≥ 0.015 in)
3/4 Hard 1205 (175) 930 (135) 5 (<0.015 in);
6 (≥ 0.015 in)
1/4 (Quarter-hard) Hard 862 (125) 517 (75) 10 (≤ 0.03 in);
12 (> 0.03 in)
1/8 Hard 690 (100) 380 (55) 35
302 plate, strip, sheet 1/16 Hard 585 (85) 310 (45) 40
302 flat bar 620 (90) 310 (45) 40 (>0.030 in)



Type 302 Grade Stainless Steel Heat Treatment

SS 302 annealing temperature is 1010-1120 °C (1850-2050 °F), recommended temperature is 1400 °C (1900 °F)

Oven stress-relief temperature and time for wire: 345 °C (650 °F), 30 minutes.

Typical stress relief temperature for SS302 steel spring wire: 425-480 °C (800-900 °F) based on 30 min at temperature, only suitable for stress relief after coiling and not valid for stress relieving after shot peening. When the spring is to be used at a high temperature, the stress relief temperature should be close to the upper limit of this range to minimize relaxation in use. Otherwise, lower temperature are better.

SS 302 typical forging temperature range is 925-1260 °C (1700-2300 °F).

Welding

SS 302 may be readily welded by friction welding, seam welding and flash welding process; arc welding not recommended. If a filler metal is required, E/ER308 or E/ER308L is recommended.

Heat Resistance

Maximum service temperatures in air

Intermittent service: 870 °C (1600 °F)

Continuous service: 925 °C (1700 °F)

Corrosion Resistance

Corrosion of AISI 302 stainless steel in marine environment
AISI Type Average corrosion rate, mm/year Average depth of pits, mm (mils) Appearance
302 <2.5 x 10-5 0.03 (1.2) Spotted with rust stain on 10% of surface



Applications

AISI 302 stainless steel is widely used in industrial and architectural industries, such as stamping, steel springs, wire rope, metal mesh, woven wire mesh, screen mesh, stainless steel decorative mesh, perforated metal sheet, steel mesh, metal filter and strainer, steel washer, handrail, etc.

SS 302 Equivalent Material

Grade 302 stainless steel equivalent to European EN standard (Germany DIN EN, British BSI…), Chinese GB, ISO, and Japanese JIS, etc.

AISI 302 Equivalent Material
US European China Japan ISO Australia India Rusia Korea
Standard Grade (UNS) Standard Grade Standard Name (Steel Number) Standard Name [UNS] Standard Grade Standard Name (ISO Number) Standard Grade Standard Grade Standard Grade Standard Grade
AISI, SAE;
ASTM
302 (UNS S30200) SAE AMS 5688 18Cr-9Ni (SAE 30302) EN 10088-1;
EN 10088-2;
EN 10088-3
X9CrNi18-9 (1.4325) GB/T 1220;
GB/T 3280
1Cr18Ni9;
12Cr18Ni9 (New designation);
[S30210]
JIS G4304;
JIS G4304;
JIS G4305
SUS302 ISO 15510 X9CrNi18-9 (4325-302-00-E)
302B (UNS S30215) X12CrNiSi18-9-3 (1.4326) 1Cr18Ni9Si3;
12Cr18Ni9Si3 (New designation);
[S30240]
SUS302B X12CrNiSi18-9-3 (4326-302-15-I)



Stainless Steel Wire

AISI 302/304 ASTM A 313 AISI 316 ASTM A 313 (631) 17-7 PH ASTM A 313 (631)
Cr-17.0-19.0% Ni-8.0-10.0% Cr-16.0-18.0% Ni-10.0-14.0% Mo-2.0-3.0% Cr-16.0-18.0% Ni-6.5-7.5% Al-.75-1.5%
125-325 110-245 Cond CH 235-335
28 28 29.5
30-40 40 45
10 10 11
550º 550º 650º
288º 288º 343º
C35-45 C35-45 C38-57
Cold drawn,general purpose,corrosion and heat resistant.Magnetic in spring temper. Cold drawn,Heat resistant and betler corrosion resistance than 302.Magnetic in spring temper. Cold drawn & precipitation hardened after fabrication.High strengh and general purpose corrosion resistance.Slightly magnetic in spring temper.

General.The use of stainless spring steels has increased considerably in recent years.Sevaral new compositions are now available to withstand corrosion.All of these materials can be used for high temperatures up to 650°f.



Available in any of the ‘profile options’

Stainless Steel 302 has good mechanical properties and corrosion resistance.

Stainless Steel 302 is also known as AISI 302.

Chemical Composition Specifications Designations Key Features Typical Applications
Element Min % Max %
C 0.12
Mn 2.00
P 0.045
S 0.03
Si 1.00
Cr 17.00 19.00
Ni 8.00 10.00
Fe BAL



AMS 5688
ASTM A313
ASTM A580
BS 970
BS 2056
W.Nr 1.4310
UNS 30200
AWS 160
Good mechanical properties and corrosion resistance. Springs.
Engineered components.
Wire mesh.
Wire cloth.
Hose braiding.



Density 8.0 g/cm³ 0.289 lb/in³
Melting Point 1420°C 2590°F
Coefficient of Expansion 17.6 μm/m °C (20 – 100°C) 9.8 x 10-6 in/in °F (70 – 212°F)
Modulus of Rigidity 70.3 kN/mm² 10196 ksi
Modulus of Elasticity 187.5 kN/mm² 27195 ksi



Heat Treatment of Finished Parts
Condition as supplied by Alloy Wire Type Temperature Time (Hr) Cooling
°C °F
Annealed or Spring Temper Stress Relieve 250 480 1 Air



Properties
Condition Approx. tensile strength Approx. operating temperature
N/mm² ksi °C °F
Annealed 600 – 800 87 – 116 -200 to +300 -330 to +570
Spring Temper 1300 – 2200 189 – 319 -200 to +300 -330 to +570

The above tensile strength ranges are typical. If you require different please ask.
