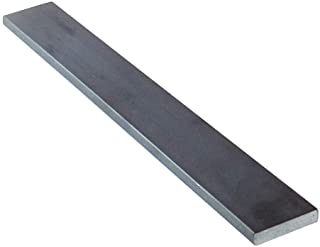

AISI 1095 Sping Steel

AISI 1095 Sping Steel

AISI 1095 Sping Steel

AISI 1095 Steel

SAE AISI 1095 steel is one of the most widely used 10 series steels, with good performance and low cost, with appropriate toughness and wear resistance, but poor corrosion resistance.



1095 Carbon Steel Applications

AISI SAE 1095 carbon steel can be made into steel billets, steel powder, which can be used as tool steel, blade steel, spring steel. 1095 high carbon steel uses mainly include chef knife, kitchen knife, pocket knife, mower knives, Bowie knife, hunting knife, doctor blade, wear parts, various springs, plow beams, ploughshares, scraper blades, and brake discs.



Datasheet & Specification

Below is material AISI 1095 steel datasheet and specification including chemical composition, mechanical properties, heat treat, density, thermal expansion coefficient, thermal conductivity, yield strength, hardness, etc.



AISI SAE 1095 Chemical Composition

The table below lists AISI 1095 carbon steel chemical composition.

AISI 1095 Chemical Composition (%)
ASTM AISI Type (UNS) C Mn P (≤) S (≤)
ASTM A29/A29M 1095 (UNS G10950) 0.90-1.03 0.30-0.50 0.040 0.050



AISI 1095 Mechanical Properties

SAE AISI 1095 steel mechanical properties are given in the table below.

Steel (UNS) Tensile strength (Mpa) Yield strength (Mpa) Elongation in 50 mm, % Reduction in area, % Hardness (HB) Processing, condition or treatment
AISI 1095 (UNS G10950) 830 460 10 25 248 Hot rolled
680 520 10 40 197 Spheroidized annealed cold drawn
655 380 13 21 192 Annealed at 790 °C (1450 °F)
965 570 9 18 293 As-rolled
1015 505 9.5 14 293 Normalized at 900 °C (1650 °F)



Cold-rolled strip used for cold formed springs

Minimum tensile strength (Tempered), MPa (ksi): 1240-2340 (180-340);

Modulus of elasticity, GPa (ksi): 210 (30,000)

Annealed Hardness (HRB): 88

AISI SAE 1095 Physical Properties

Notes: 10-6/K = 10-6.K-1 = (µm/m)/°C

1095 carbon steel coefficients of linear thermal expansion
Value (10-6/K) Temperature, °C (°F) Treatment
or condition
11.4 20-100 (68-212) Annealed
13.0 0-100 (32-212) Hardened
14.6 20-650 (68-1200)



Material 1095 thermal conductivity
Value (W/m·K) Temperature, °C (°F)
46.7 100 (212)



Specific Heat of AISI 1095 High Carbon Steel
Value (J/Kg·K) Temperature, °C (°F)
461 20-100 (68-212)



Electrical Resistivity of AISI SAE 1095 Steel
Value (μΩ·m) Temperature, °C (°F)
0.18 20 (68)



SAE 1095 Steel Heat Treatment

The following table shows 1095 steel heat treat and rockwell hardness.

Transformation Temperature

Approximate Ac 1 , Ac 3 , Ar 1 , and Ar 3 of 1095 high carbon steel
AISI grade Transformation Temperatures, °C (°F) Brinell hardness HB, after air cool
1095 Ac1 730 (1340) 321-255
Ac3 770 (1415)
Ar3 725 (1340)
Ar1 700 (1290)
Heating or cooling at 28 °C (58 °F)/h



1095 Heat Treat Temperature
Steel Austenitizing temperature for direct hardening, °C (°F) Normalizing temperature, °C (°F) Full annealing temperature, °C (°F)
1095 790-815 (1450–1500) 845-900 (1550-1650) 790-830 (1450-1525)

Notes: The austenitizing of 1095 steel is commonly used on parts where induction hardening is employed, the quenching medium is water, brine or oil. If oil quenching is used, the alternatively austenitizing temperature may be 815-870 °C (1500-1600 °F).



Normalizing

1095 steel normalizing temperature range is 845-900 °C (1550-1650 °F), typically normalized at 845 °C (1550 °F), and should be cooled in still air.

Full Annealing for Small Steel Forgings

Recommended temperatures and cooling cycles for full annealing of small carbon steel forgings
Steel forging Full annealing temperature, °C (°F) Cooling cycle, °C (°F) Brinell hardness HB
1095 790-830 (1450-1525) 790 to 655 (1450-1215) 167-229

Notes: The data are for forgings with a maximum section thickness of 75 mm (3 in.). For parts with a maximum thickness of 25 mm (1 in.), the time at temperature is usually at least 1 hour; for each additional thickness of 25 mm, add 0.5 h. The furnace cooling rate is 28 °C/h (50 °F/h).



Hardening of 1095 High Carbon Steel

Heat to 800 °C (1475 °F). Quench in water or brine. The oil quenching section below 4.75 mm (3/16 in.) is used for hardening. The hardness after quenching is as high as 66 HRC. The maximum hardness can be adjusted downwards by tempering.



Austempering

1095 high carbon steel responds well to austempering (bainite hardening). Austenitize at 800 °C (1475 °F). Quench in a agitated molten salt bath at 315 °C (600 °F). Hold for 2 hours and cool in air.



Direct Hardening

Typical heat treatments for direct hardening. Temper to desired hardness
SAE steel Normalizing temperature, °C (°F) Annealing temperature, °C (°F) Hardening temperature, °C (°F) Quenching medium
1095 845-900 (1550-1650) 760-815 (1400-1500) 855-885 (1575-1625) Water or oil

Notes: Spherical structures are usually used for processing purposes and should be cooled or isothermally transformed very slowly to produce the desired structure.



Tempering

Typical hardnesses of 1095 carbon steel after tempering for 2 hours at different temperatures
Grade Temperature, °C (°F) Rockwell hardness, HRC Heat treatment
1095 high carbon steel, carbon content: 0.95% 205 (400) 58 HRC Normalized at 885 °C (1625 °F), water quenched from 800-815 °C (1475-1550 °F); average dew point, 7 °C (45 °F)
260 (500) 57 HRC
315 (600) 52 HRC
370 (700) 47 HRC
425 (800) 43 HRC
480 (900) 42 HRC
540 (1000) 41 HRC
595 (1100) 40 HRC
650 (1200) 33 HRC



1095 Steel Equivalent Grade

AISI 1095 high carbon steel equivalent to European EN (Germany DIN EN, British BSI, French NF…), Chinese GB and Japanese JIS standard.

Notes:

DIN 17350: Tool steels, has been replaced by EN ISO 4957.

GB/T 1298: Carbon tool steels

JIS G4401: Carbon tool steels

DIN 17222: Cold rolled steel strips for springs

AISI 1095 equivalent material
US European Union Germany China Japan ISO
Standard Grade (UNS) Standard Grade Standard Grade (Steel Number) Standard Grade (Steel Number) Standard Grade Standard Grade Standard Grade (Steel Number)
AISI; SAE;
ASTM A29/A29M
1095 (UNS G10950) AMS 5121F, 5122F, 5132G EN ISO 4957 C105U (1.1545) DIN 17350; DIN 17222 C105W1 (1.1545); Ck101 (1.1274) GB/T 1298, GB/T 3278, GB/T 5952 T10 JIS G4401 SK105 ISO 4957



HOW GOOD IS 1095 STEEL?

1095 Steel is a basic form of carbon steel and is most commonly used in the construction of various kinds of knives. It has a carbon content of .95% which serves to harden the steel and reduce the amount of wear that a blade will experience over time. Despite the reduction in wear created by the high presence of carbon, 1095 steel is not as tough as other types of steel due to the lower levels of manganese, which serves to harden the steel. Yet, although manganese hardens steel when used in certain levels, in higher levels it makes for a more brittle blade overall.



1095 STEEL FOR KNIVES

1095 steel, when used in knives, holds a great edge and is very easy to sharpen. However, the properties of this type of steel give it a tendency to easily rust if not oiled and deliberately cared for. These kinds of blades will usually have some kind of coating to combat rusting, but so long as the blade is properly cared for, rust should not be too great a problem for anyone.

Because 1095 steel can be considered more brittle than other types of steel, it is generally good for blades that are not too thin. It is easy to sharpen, but if a blade made with this type of steel doesn’t have a decent amount of thickness behind it, it is liable to break easily. For example, it is not an appropriate grade of steel for tools, folding knives, or sushi knives.

1095 can be heat treated to increase its overall strength, but if 1095 steel gets brittle after that point, there is not much that can be done about it and it may break on you. Though it can be used in tools such as chopping knives, it is not necessarily the most effective choice. It shines, but there are other steels out there which are better formulated to be used in such objects. 1095, though not alloyed with chromium like stainless steel, takes a great polish very easily.
